Validation API

Server side integration

Alternatively to standard validation SARD also provides an advanced way that could be used in cheater-heavy scenarios. This validation process is multi-phase and requires additional logic on client and server sides.

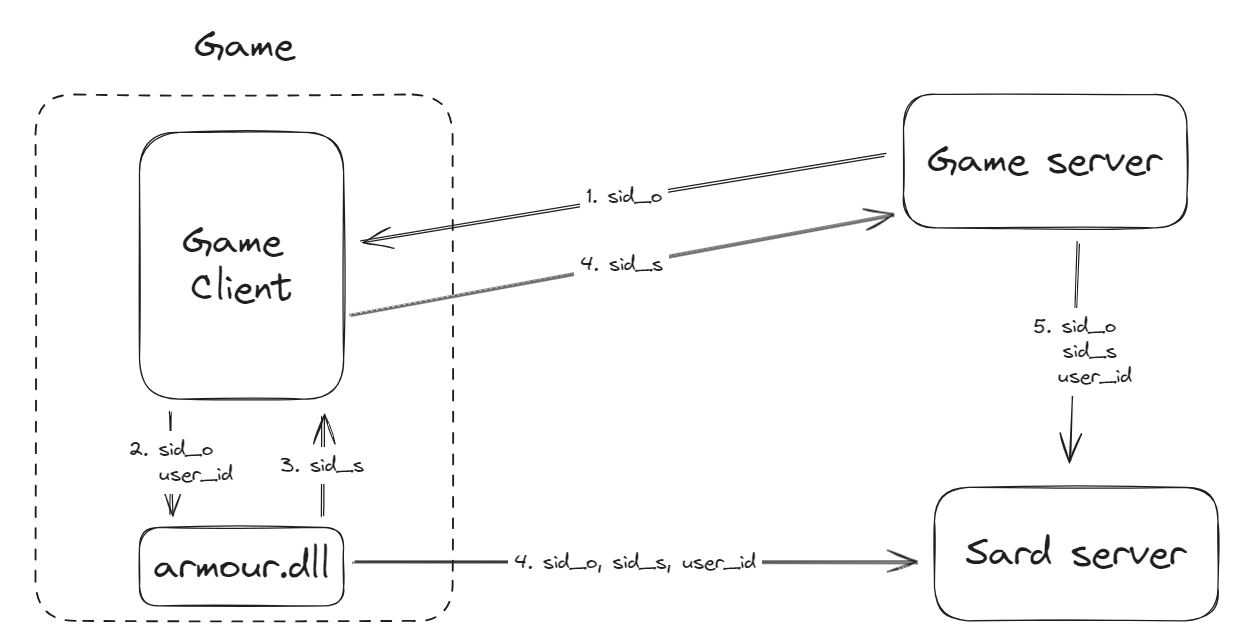

Validation process

Phase 1

1. When player connects to game server, server provides sessionId to Game Client and SARD Server (later we call this sessionId sid_o) along with UserId as during normal validation process.
2. Game Client calls SARD functions passing sid_o, and user_id
3. sid_o and user_id are passed to SARD server

Phase2

1. Sard sessionId (sid_s) is obtained by Game Client
2. Game Client sends sid_s to Game Server
3. Game Server makes an API call to SARD server with sid_s, sid_o and user_id
4. Validation happens resulting in kick function in case of missmatch

Validation implementation

Client side

Below is code snippet of updated c++ library to work with advanced validation process.

• SardSetUserId - is a function to set userId for validation
• SardSetSessionId - is used to set sessionId generated by game server (we reffered to it as sid_o)
• SardGetSecureSession - is used to obtaind sard session Id (we reffered to as sid_s)

*W function may be used to provide wchar_t instead of char to functions

Code snippet

dllLoader.cpp

static HMODULE sard_lib = 0;
static void (*SardSetUserName)(const char*);
static void (*SardSetUserNameW)(const wchar_t*);

static void (*SardSetUserID)(const char*);
static void (*SardSetUserWID)(const wchar_t*);

static void (*SardSetSessionID)(const char*);
static void (*SardSetSessionWID)(const wchar_t*);

///@ call will be blocked until get ID from Sard server
static const char* (*SardGetSecureSessionID)();


static void (*SardFinalize)();

static void finish()
{
    if (SardFinalize)
    {
        SardFinalize();
    }
}

static void setUserName(const char* name)
{
    if (SardSetUserName)
    {
        SardSetUserName(name);
    }
}

static void setUserNameW(const wchar_t* name)
{
    if (SardSetUserNameW)
    {
        SardSetUserNameW(name);
    }
}

static void setUserID(const char* userID)
{
    if (SardSetUserID)
    {
        SardSetUserID(userID);
    }
}

static void SetUserWID(const wchar_t* userWID)
{
    if (SardSetUserWID)
    {
        SardSetUserWID(userWID);
    }
}

static void setSessionID(const char* sessionID)
{
    if (SardsetSessionID)
    {
        SardsetSessionID(sessionID);
    }
}

static void setSessionWID(const wchar_t* sessionWID)
{
    if (SardsetSessionID)
    {
        SardsetSessionWID(sessionWID);
    }
}

static const char* getSecureSessionID()
{
	return SardGetSecureSessionID ? SardGetSecureSessionID() : NULL;
}


static void SardInit(const char* dllPath)
{
    sard_lib = LoadLibraryA(dllPath);
    if (sard_lib)
    {
        SardSetUserName = (void (*)(const char*)) GetProcAddress(sard_lib, "sardSetUserName");
        SardSetUserNameW = (void (*)(const wchar_t*)) GetProcAddress(sard_lib, "sardSetUserNameW");

        SardSetUserID = (void (*)(const char*)) GetProcAddress(sard_lib, "sardSetUserID");
        SardSetUserWID = (void (*)(const wchar_t*)) GetProcAddress(sard_lib, "sardSetUserWID");

        SardSetSessionID = (void (*)(const char*)) GetProcAddress(sard_lib, "sardSetSessionID");
        SardSetSessionWID = (void (*)(const wchar_t*)) GetProcAddress(sard_lib, "sardSetSessionWID");

        SardGetSecureSessionID = (const char* (*)()) GetProcAddress(sard_lib, "sardGetSecureSessionID");

        SardFinalize = (void (*)()) GetProcAddress(sard_lib, "sardFinalize");

        void (*SardInitialize)() = (void (*)()) GetProcAddress(sard_lib, "sardInitialize");

        if (SardInitialize)
        {
            SardInitialize();
        }
    }
}

Server side

Validation request

curl -X POST https://validation.sard.ac/apb/api/ID/validate \
-H "Authorization: XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX \
-H "Content-Type: application/json" \
-d '{"userId": "XXXX"
     "serverSessionId": "YYYY"
     "sardSessionId": "ZZZZ"}'
